Standard features

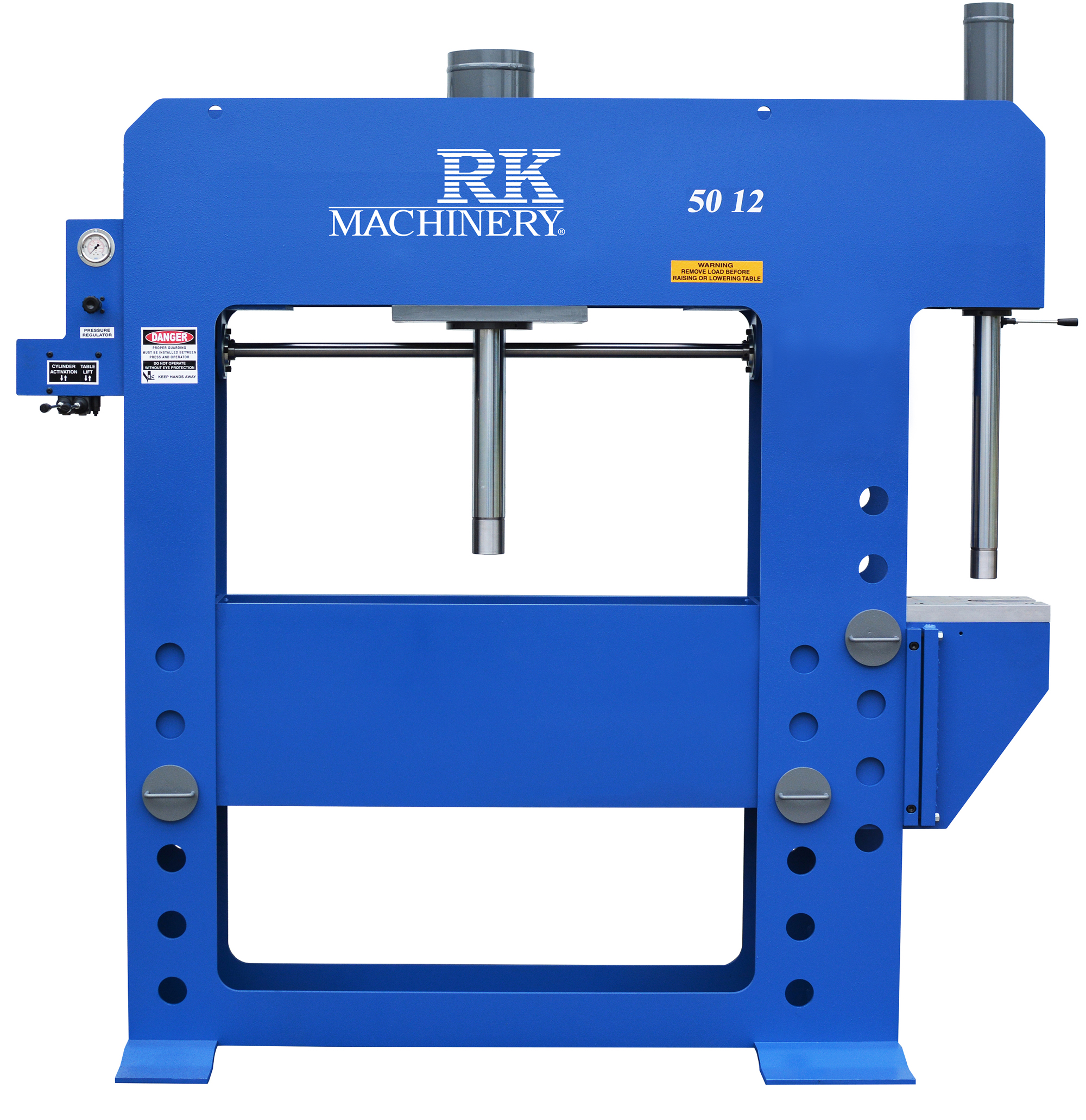

50 ton H-frame press in combination with 12 ton Broach press.
20 inch stroke suitable for broaching & other applications.
Work tables are independent of each other.
All powered 2 axis are fingertip controlled.
Pressure regulator to limit the ram pressure.
Pressure regulator to limit the ram pressure up to 12 tons.
Speed control limits the maximum speed of ram travel, allowing operator to select the proper speed for the task.
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Cylinder stroke to 20 inches.
Self-locking table design eliminates lateral movement.
Standard feature on all H Frame Press models.
The more pressure that you apply to the workpiece, the more ridgid the table and frame become.
Flat ram nose can be easily changed to allow the user to adapt the press to a specific job.
The worktable has 6 positions to accommodate the proper working height.
Options available
Stop / Start c/w emergency stop button, wired direct to motor. Model may vary depending on the voltage.
Pressing plate for a Hydraulic press. Table is precision milled.
Hydraulic Press V Blocks, matched pair.
Hydraulic speed control. This is used regulate the speed of the Ram. From fast to very slow.
Front safety guard for operator protection. Safety guard can be removed within a few seconds if necessary.
Adjustable stroke control c/w foot pedal-electric solenoid valve, speed control and electric control panel.
Operation of the safety kit: When any of the four guards are opened, the press will automatically go to jog mode "low pressure", unless the operator turns the key to the “on” position which will enable the operator to use the press at full pressure with the guards open.
Industrial side lights for better visibility.
Foot pedal-electric solenoid valve for hands-free operation, c/w electric control panel
Handheld wireless remote control with variable speed on all axis, permits the operator to move freely around the press.
